570W Solar Light Tower

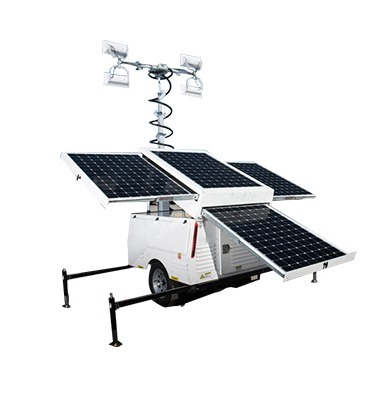

The 570W solar light tower is a solar-powered, mobile lighting configuration built for off-grid sites that need dependable illumination without a grid connection or diesel generator. The unit combines a 570W monocrystalline PV array, four 100W LED light heads, and a 4 × 200Ah gel battery bank on a single-axle trailer with a 6.5 m manual telescoping mast.

This configuration suits buyers who need a self-contained lighting position they can tow to a site, raise, and operate independently — outdoor parking lots, construction sites, traffic monitoring points, public security positions, sports and event venues, mining and oil operations, emergency response, and equipment rental fleets. It is manufactured by Biglux Innovation Ltd under the BIGLUX brand, a mobile solar equipment manufacturer with more than 10 years of self-described experience in the mobile solar industry.

Configuration at a glance

Item	Specification
Product	High Power Solar Light Tower, solar version
PV array	3 × 190W monocrystalline solar panels (570W total)
LED lighting	4 × 100W LED heads, total luminous flux 4 × 11000 lm
Battery	4 × 200Ah gel batteries (DC12V marked)
Mast	6.5 m, manual lift (telescoping)
Dimensions	1520 mm wide × 3475 mm long × 2730 mm high
Weight	920 kg
Trailer	Single axle, MAXXIS A/T R14 tires, manual outriggers, 50 mm ball hitch (4412 lbs)
Controller	Morningstar MPPT (or other MPPT)
Rated wind resistance	100 kph
Shipping	Sea freight via Shenzhen port; air freight via Shenzhen Bao'an or Hong Kong International airports; express via TNT/DHL

Solar power system

The array consists of three 190W monocrystalline solar panels, giving a total PV rating of 570W.

Power from the array is managed by a Morningstar MPPT charge controller (or another MPPT controller).

Energy is stored in four 200Ah gel batteries (DC12V marked). Actual autonomy depends on the lighting schedule, geographic location, and season, which is why those variables are listed in the pre-order checklist below.

Lighting

Illumination is provided by four 100W LED light heads, each rated at 11000 lm, for a total luminous flux of 4 × 11000 lm.

Mast and deployment

The mast extends to 6.5 m and is raised by manual lift.

At the base, the trailer uses manual outriggers to stabilize the unit once it is positioned. Deploying the tower follows a straightforward sequence: tow the unit to the required position, set the manual outriggers, raise the mast to the required height, then aim the four LED heads.

The mast and trailer combination is rated for wind resistance up to 100 kph. Site-specific conditions — ground bearing capacity, exposure, nearby structures — should always be assessed before raising the mast.

Mobility and transport

The tower is built on a single-axle trailer with MAXXIS A/T R14 tires and a 50 mm ball hitch rated at 4412 lbs.

Overall dimensions are 1520 mm wide × 3475 mm long × 2730 mm high, with a unit weight of 920 kg. These figures matter for two planning steps: towing (hitch rating and tow vehicle capability) and site placement (access width and turning space).

For delivery, three shipping routes are available:

Sea freight via Shenzhen port — typically suited to full units and larger orders.
Air freight via Shenzhen Bao'an International Airport or Hong Kong International Airport — for urgent requirements.
Express via TNT or DHL — generally for smaller consignments and spare parts.

The appropriate method depends on order composition, destination, and timeline. Buyers should confirm the shipping method and destination port or airport at the ordering stage so that documents and packing match the chosen route.

Suitable applications

The 570W solar light tower is used in applications where a lighting position must be established without grid power or where running a generator is impractical:

Outdoor parking lots — illumination for lots without fixed electrical infrastructure.
Construction sites — task and security lighting at active work areas and perimeters.
Traffic monitoring — lighting support for monitoring points and roadside equipment.
Public security — temporary illumination for checkpoints and patrol positions.
Sports and events — lighting for fields, staging areas, and evening events.
Mining and oil — illumination at remote extraction and support sites.
Emergency response — rapid deployment lighting after outages or incidents.
Equipment rental — a towable, self-contained lighting asset for rental fleets.

Because the unit is self-contained and trailer-mounted, it can be repositioned as a site evolves — a practical advantage where lighting demand shifts between phases of a project.

What to confirm before ordering

Every deployment site is different. Before placing an order, buyers typically clarify the following points with our team:

Lighting schedule — how many hours per night the four LED heads will run.
Site conditions — ground surface and bearing capacity for the outriggers, access width for towing, and expected wind exposure against the 100 kph rating.
Solar resource — geographic location, shading from structures or terrain, and seasonal variation, all of which affect daily charge input.
Towing arrangements — tow vehicle capability against the 50 mm ball hitch (4412 lbs) and 920 kg unit weight.
Shipping method — sea, air, or express, together with destination port, airport, or delivery address.
Documentation — certificates are available upon request; specify any documentation required for import or project compliance.
Spare parts and support — battery, controller, and LED head spares, plus after-sales support arrangements for your region.

Raising these points early allows the configuration and logistics to be matched to the actual job rather than adjusted after delivery.
